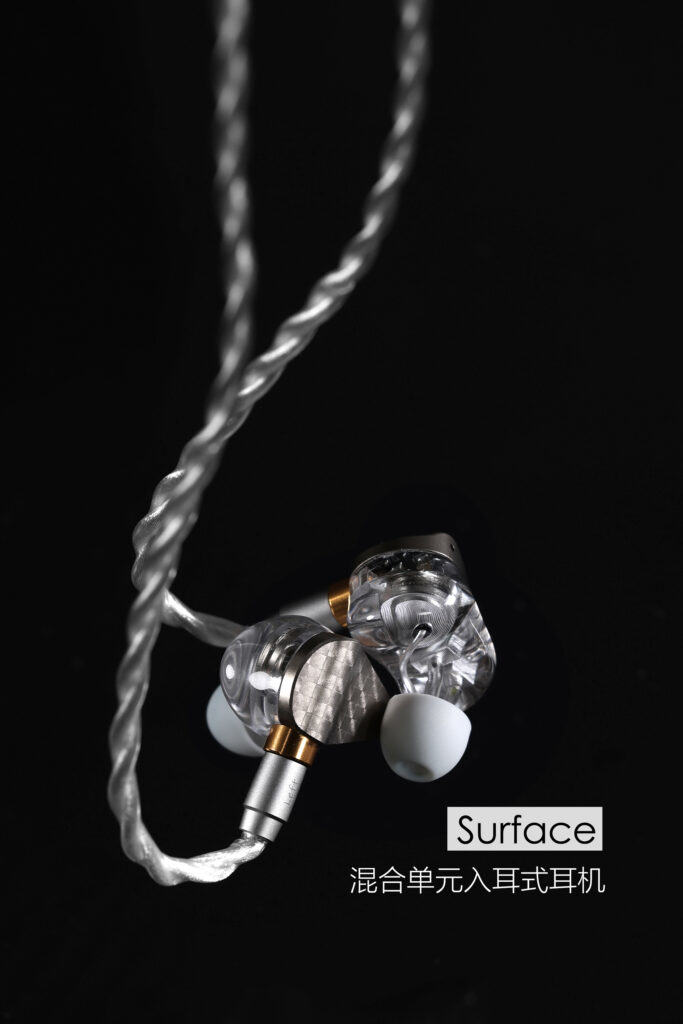

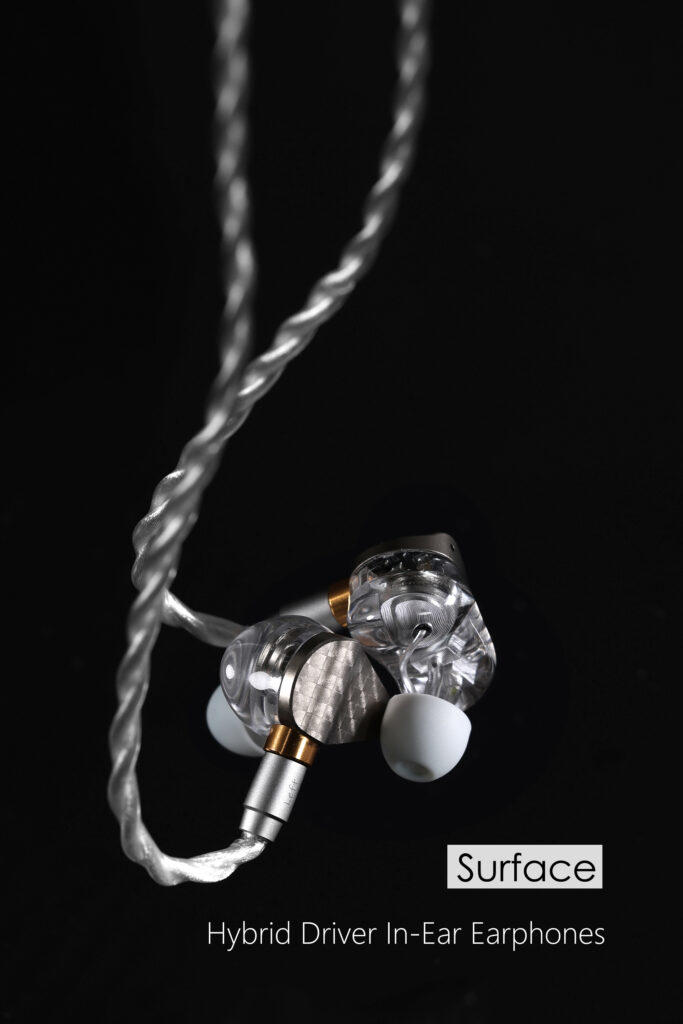

Surface
Hybrid Driver In-Ear Earphones
Aesthetic
Come to the Surface, embodies a flattened aesthetic that eliminates the psychological distance of perception. When we hold the headphones, they exist in three dimensions, but upon wearing them, the visual experience transitions to a two-dimensional plane. The design of the Surface headphones compresses the curves and graphic textures of 3D space into a 2D plane, creating a rich and varied visual tapestry upon closer inspection.
Structure
Is the earphones jack sturdy enough? It appears to be! This reflects the structural design of the Surface earphones. Beyond simply soldering the earphones socket to the crossover circuit board, additional reinforcements are implemented between the cavity and the cover plate. What looks like a decorative metal ring is, in fact, a crucial CNC-machined aluminum reinforcement piece, enhancing the overall durability.
Craftsmanship
The principle of simplifying complexity is evident in the craftsmanship of the Surface headphones. Inside the multi-driver headphones, there’s a web of intricate wiring and crossover components. These elements are arranged in a way that is both aesthetically pleasing and ensures production consistency, transforming disorder into a neatly organized structure.
Specially Developed Crossover Circuit Board
The design of the crossover has undergone extensive comparisons over time, particularly taking into account feedback from audio enthusiasts nationwide. This process has ensured that the final product meets high acoustic standards while also providing an enjoyable listening experience.
The front chamber of the earphones is shaped using 3D printing technology, featuring high-precision physical filtering sound conduits, speakers, and a crossover circuit board. All wiring from the speaker units converges at the back of the crossover circuit board for soldering, which helps to reduce electromagnetic interference signals introduced by the wires.
Dynamic Driver + Quad Balanced Armature
The Surface earphones utilize a physical three-way crossover structure. The speaker unit module has been optimized from various previous models by MOONDROP and incorporates ddHiFi’s tuning philosophy. Combined with the specially developed crossover circuit board, these features create a fresh auditory experience, with a balanced frequency distribution ensuring smooth transitions and solid, enjoyable mid-bass frequencies.
Standard Upgraded Cable
The Surface earphones come standard with the ddHiFi BC120S cable.
Plug Connector Type: 4.4mm Balanced Plug
Pin Type: 0.78mm 3.5mm Long Pins
Conductor: High Purity Oxygen-Free Copper with Silver Plating, 4-strand Twisted Pair
Core Conductor: Litz Structure, 0.10mm Diameter × 30 Wires
Shielding Conductor:** Litz Structure, 0.05mm Diameter × 116 Wires
Diameter:Single Core 1.8mm
Outer Material:Transparent PVC
Length:120cm
Items Included in the Package
Surface Earphones Units: 1 Pair
4.4mm Plug Earphones Cable: 1 Piece
Sealed Storage Box: 1 Piece
Ear Tips: 3 Pairs (1 Pair each of S/M/L sizes)
Printed Inner Page, Manual, Warranty Card, Certificate of Compliance: 1 Copy Each
*Ear tips are provided by the brand KIWIEARS, model KIWIFLEX.
Specifications
Model: E14D
Product Name: Surface Hybrid In-Ear Earphones
Impedance: 15Ω ±15% (@1kHz)
Frequency Response Range: 10Hz – 30kHz
Effective Frequency Response Range: 20Hz – 20kHz (IEC60318-4, -3dB)
Sensitivity: 118dB/Vrms (@1kHz)
Total Harmonic Distortion:≤1% (@1kHz)
Driver Configuration: 1 DD and 4 BA Drivers (3-Way Crossover)
Standard Plug Type: 4.4mm Balanced
Shell Craftsmanship: 3D printing with imported medical resin
Earphones Connector: 0.78-2pin
If you are interested in getting one, please check with local sales agent for its availability. If there is no sales agent in your local market, just grab one from DD Aliexpress store.
